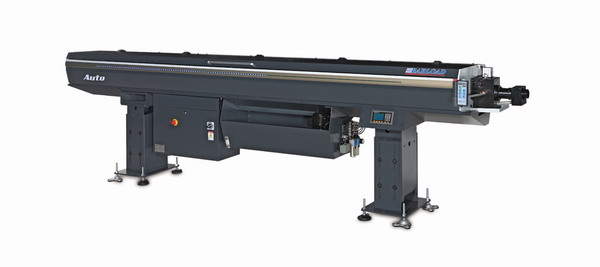

AUTO42 Automatic Hydraulic Bar Feeder (Magazined-Type)

https://www.barload.com/web/image/product.template/2/image_1920?unique=4e6f900
  • Adjustment-free for sizing bar materials.(Patented)
  • Hidden-and-secured wirings.
  • Speedy bar-change.
  • Adjustable torque force and speed.
  • Well-designed for separating lubricant drain and remnant collection.

This combination does not exist.


Features


A standard LED-flashing-stripe-display unit, which functions bar length, bar material change, alarm display while feeding/machining being easy to monitor ( patented).


A HMI display unit functions international languages being easy to set up, user friendly, showing alarm message to troubleshoot.


Free adjustment of clamping device while bar material is changed.


A V-shape anti-vibration device ( bush pairs) is one size to fit all in terms of economy and efficiency.


A mobile remote control box is user friendly to operate with.


PLC control, easy to match any CNC lathe, reliable and accurate.

Specifications

Model
Auto
Specifications
2.5m , 3.0m , 3.6m,4.2m
Guide Channel
21mm, 27mm,33mm,37mm,39mm,43mm
Bar Diameter
5-20mm,5-26mm,5-32mm,5-36mm,5-38mm,5-42mm
Bar Capacity
10mm/26 Pcs
Bar Length
2700mm,3200mm,3800mm,4200mm
Machine Weight
2.5m – 860kg , 3.0m – 950kg , 3.6m – 1060kg
Air Pressure
6 Kgf / Cm² 70 Psi
Transmission
Servo Motor
Lubricant
Fk Iso Vg68/ Fk Hydraulic Oil68
Capacity
38l (10 Gallon)
Power Consumption
810w
Power Supply
3ø X 220v 50/60hz


Specifications

Type Automatic
Bar Length Long
Headstock Type Fixed
