Features

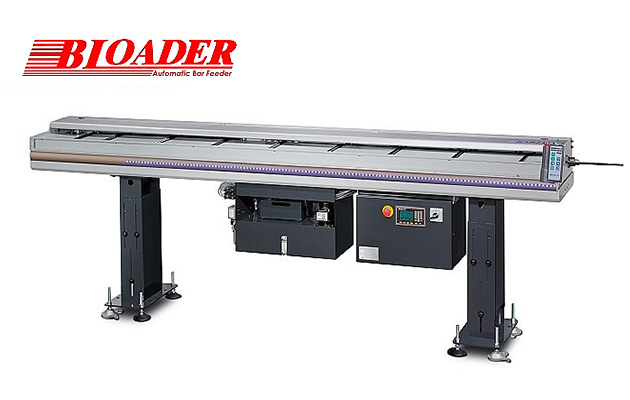

The MN series bar feeder employs PLC control in combination with personified human-machine interface,providing easy setting and operation.
Multiple mode selections meet various application requirements.
The loading capacity of the device is :
Φ1mm~7mm bar:35 pieces
Φ7.1mm~12mm bar:18 pieces
Choice of various sizes of guide channel: Φ5, Φ8, Φ13mm
The MN series bar feeder provides fast change of guide channel for saving time and increasing efficiency.
Suitable for right hand or left hand type lathe.
User-friendiy operation for bar loading and machine operation.
The non-oil film type is applicable for various lathes.
Choice of 2M and 2.5M
Specifications
| Model |
MINI
|
| Applicable Lathe Type |
Fix Head Type,Swiss Type
|
| Feeding Direction |
LEFT,RIGHT
|
| Specifications |
2.0M,2.5M,3.0M,3.6M
|
| Guide Channel |
5mm,8mm,13mm
|
| Bar Diameter |
0.8-4mm,1-7mm,2-12mm
|
| Bar Capacity |
1-7mm/35pcs , 7.1-12mm/18pcs
|
| Bar Length |
2100,2800,3100mm
|
| Machine Weight |
NON-OIL FILM TYPE 2.0M-270KG,2.5M-300KG OIL FILM TYPE 2.0M-350KG,2.5M-380KG,3.0M-410KG
|
| Air Pressure |
6 kgf / cm² 70 psi
|
| Transmission |
SERVO MOTOR
|
| Lubricant |
FK ISO VG68,FK HYDRAULIC OIL 68
|
| Oil Tank Capacity |
26L(6.5 GALLON)
|
| Power Consumption |
685W
|
| Power Supply |
1Φx 220v 50/60Hz
|
